Woodwork Machinery
Machinery & Equipment
Woodwork
Machinery
Saws · Planers · CNC Routers · Lathes · More
Professional-grade woodworking machines for sawmills, furniture manufacturers, joineries, and timber yards — sourced from trusted global makers and supplied with full after-sales support.
40+
Machine Types
200+
Units Installed
2yr
Warranty Standard
Pro-Grade Machines
CE
Certified
Machines
Machines
Scroll
BAND SAWS ✦
CNC ROUTERS ✦
PLANERS & THICKNESSERS ✦
SPINDLE MOULDERS ✦
WOOD LATHES ✦
EDGE BANDERS ✦
DUST EXTRACTORS ✦
SAWMILL MACHINES ✦
DRILL PRESSES ✦
BAND SAWS ✦
CNC ROUTERS ✦
PLANERS & THICKNESSERS ✦
SPINDLE MOULDERS ✦
WOOD LATHES ✦
EDGE BANDERS ✦
DUST EXTRACTORS ✦
SAWMILL MACHINES ✦
DRILL PRESSES ✦
200+
Machines Installed
Across Pakistan
Across Pakistan
About Our Machinery
Built to Cut,
Shape & Perform
We supply professional woodworking machines to sawmills, joineries, furniture factories, and timber processing plants — from single-machine upgrades to full production line setups.
Every machine we stock is CE-certified and backed by a 2-year warranty with local service support. We offer installation, commissioning, and operator training as part of every supply contract.
- CE marked and safety-certified across all ranges
- New and refurbished machines available
- On-site installation & commissioning included
- Operator training provided with every supply
- Spare parts and service contracts available
Machine Categories
Our Woodworking Machines
Best Seller
Cutting
Industrial

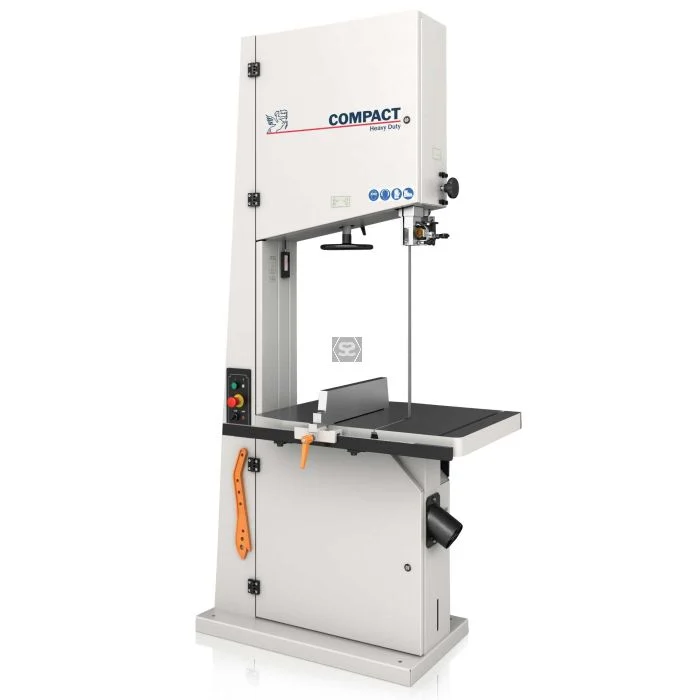

Band Saws
Band Saws
Heavy-duty vertical and horizontal band saws for ripping, resawing, and curve cutting. Available in 14″ to 36″ wheel diameter for light to industrial-scale use.
View Models →
CNC

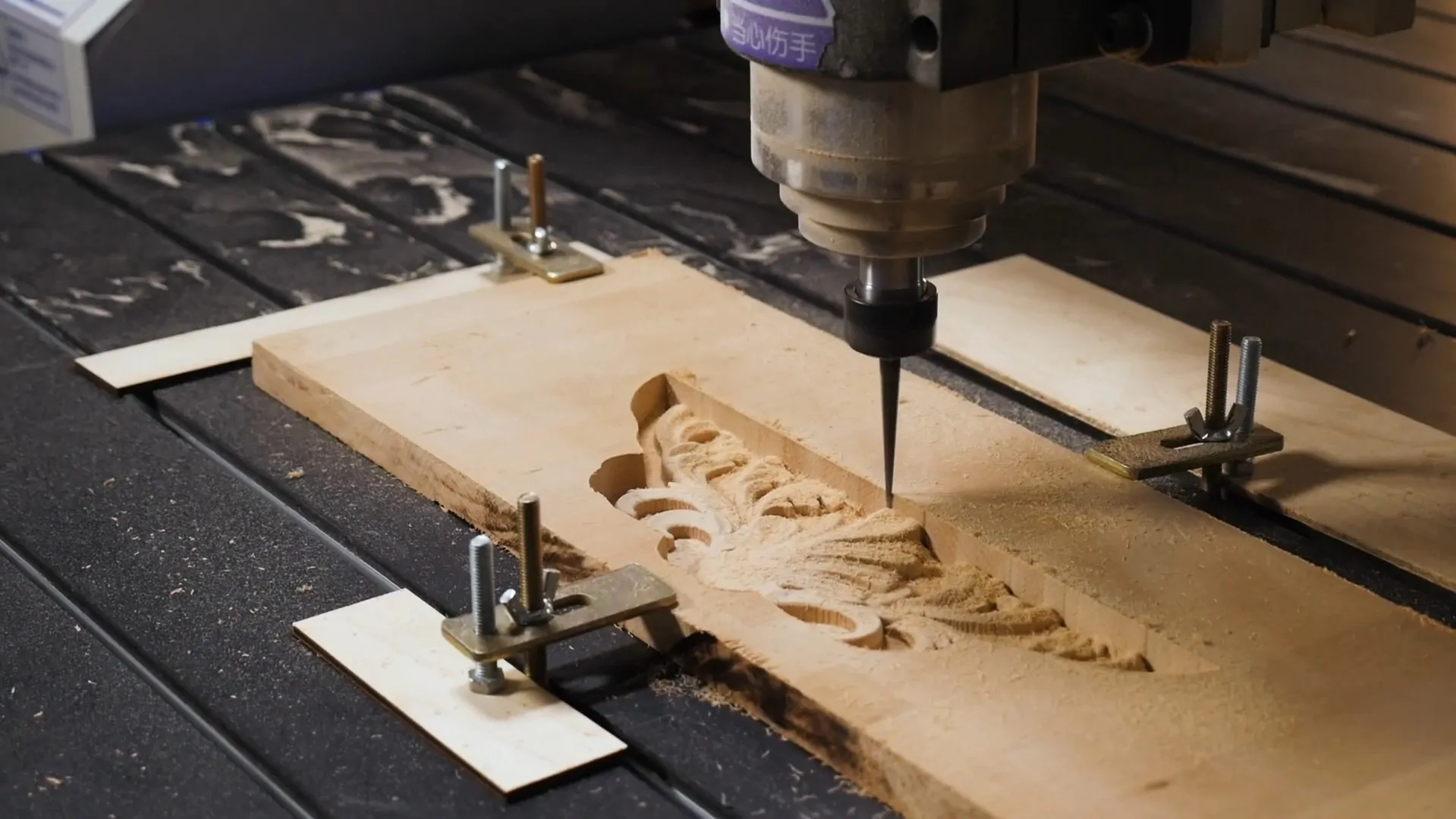

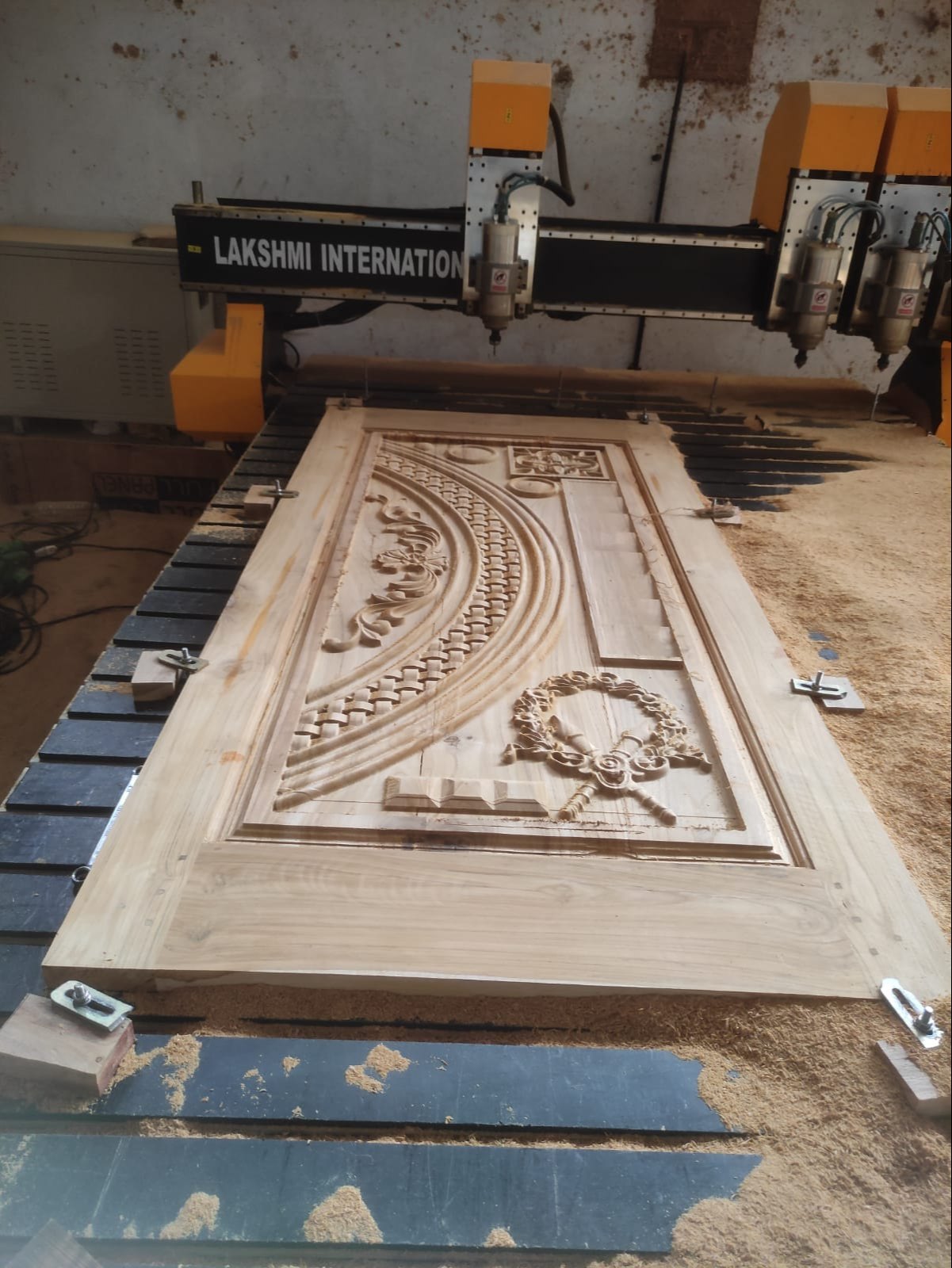

CNC Wood Routers
3-axis and 4-axis CNC routers for precision carving, profiling, and panel cutting. ATC spindle options available.
View Models →
Surfacing

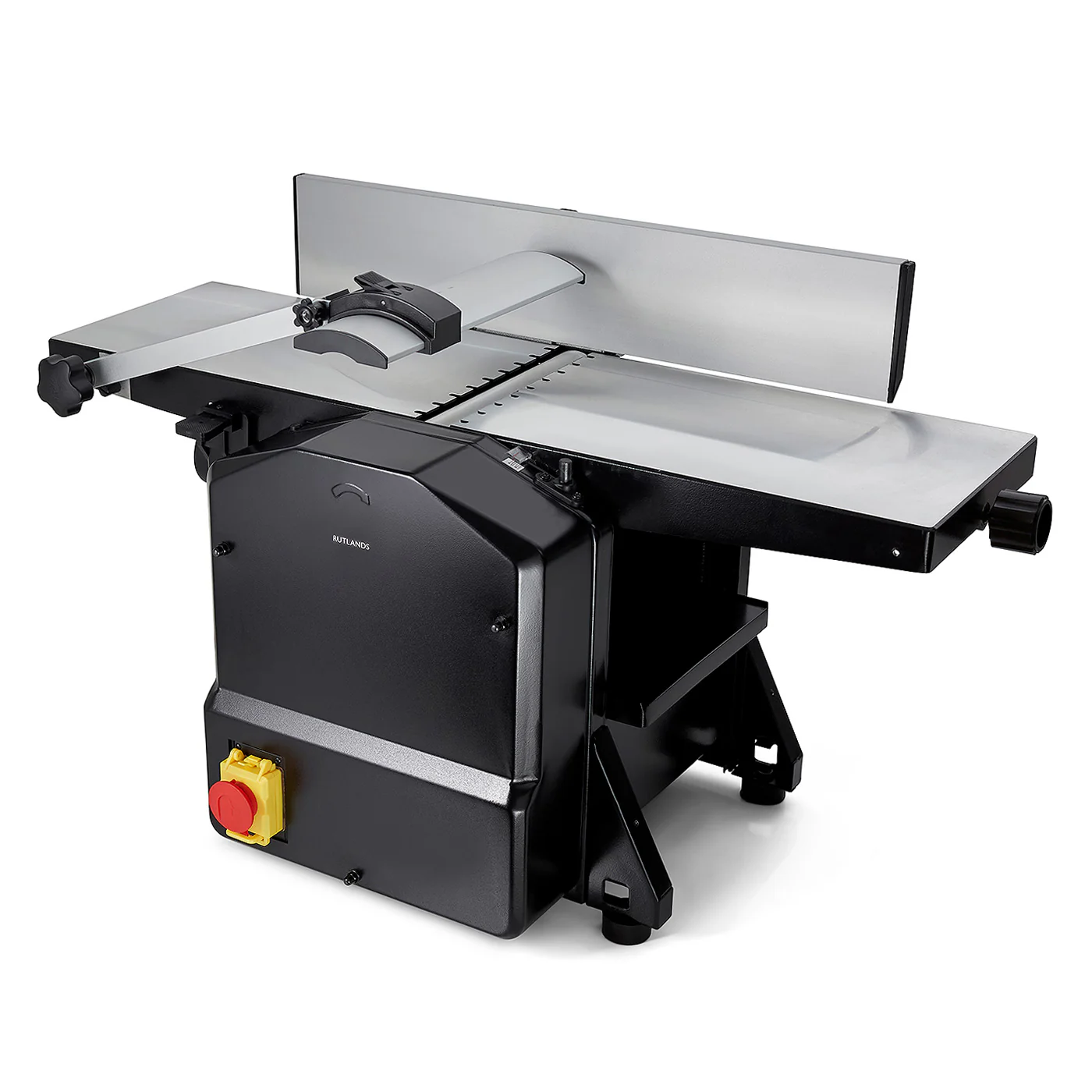

Planers & Thicknessers
Surface planers and single-sided thicknessers from 300mm to 630mm — spiral cutter heads available for a whisper-smooth finish.
View Models →
Profiling

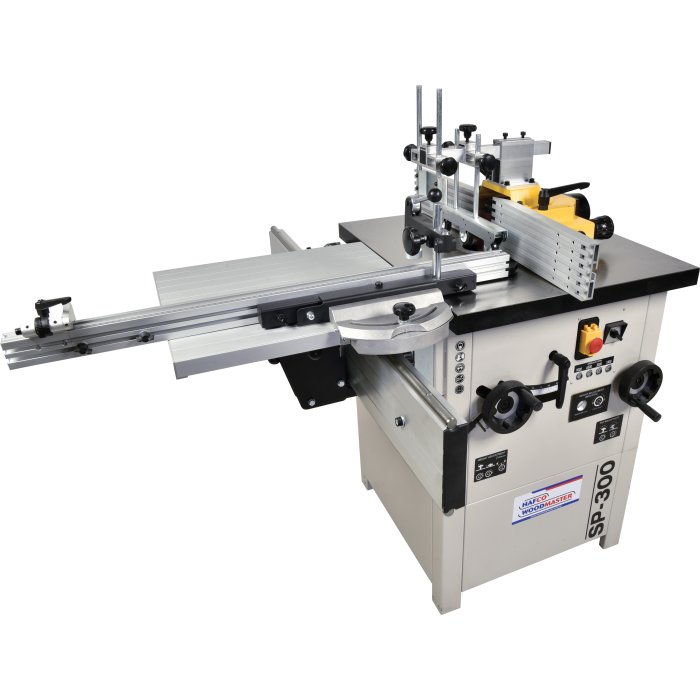

Spindle Moulders
Vertical spindle shapers for profiling rails, stiles, mouldings, and curved components. Tilting spindles available.
View Models →
Turning

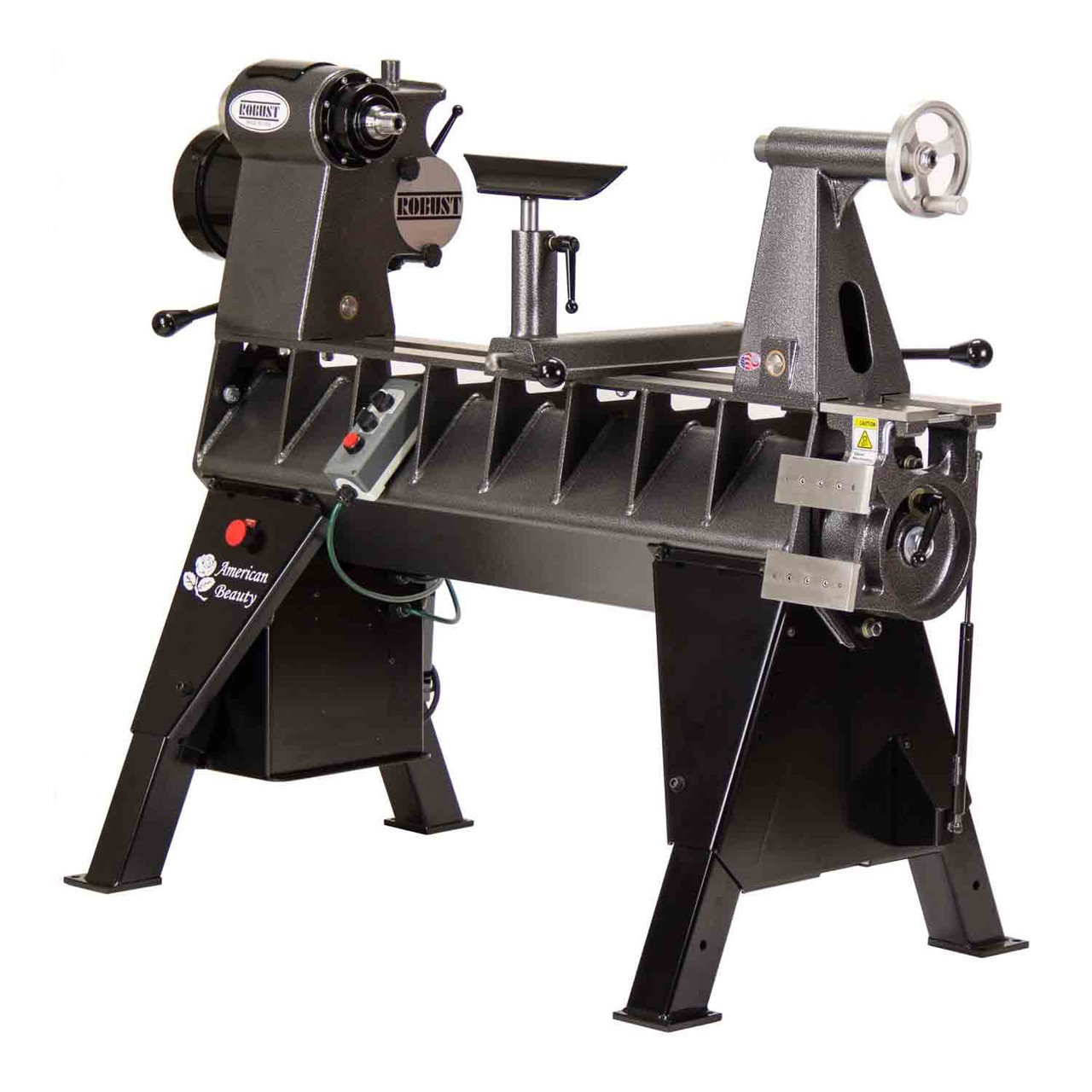

Wood Lathes
Bowl lathes, spindle lathes, and CNC turning machines from bench-top to floor-standing industrial models.
View Models →
Technical Specifications
Machine Spec Sheets
Standard specifications for our most popular machine categories. Contact us for full data sheets, 3D drawings, or custom requirements.
| Wheel Diameter | 14″, 18″, 24″, 30″, 36″ models available |
| Cutting Height | Up to 400mm (industrial 36″ model) |
| Blade Width Range | 3mm – 35mm |
| Table Size | 500×500mm – 800×800mm |
| Motor Power | 1.5kW – 11kW (single & 3-phase) |
| Blade Speed | 400 – 1,200 m/min (variable) |
| Frame Material | Cast iron table, steel fabricated frame |
| Safety Features | Blade brake, blade guard, emergency stop |
| CE / Standards | CE MarkedEN ISO 11553 |
| Axis Configuration | 3-axis standard | 4-axis & 5-axis available |
| Table Size (XY) | 1300×2500mm – 2000×4000mm |
| Z Clearance | 200mm – 500mm |
| Spindle Power | 3kW – 12kW (ATC spindle option) |
| Spindle Speed | 6,000 – 24,000 RPM |
| Positioning Accuracy | ±0.05mm |
| Controller | DSP / Syntec / Fanuc options |
| Tool Changer | 8 / 12 / 16 station ATC (optional) |
| CE / Standards | CE MarkedISO 10791 |
| Planing Width | 300mm, 410mm, 510mm, 630mm models |
| Max Planing Depth | 3mm per pass (4mm heavy models) |
| Cutter Block | Square 2-blade | Spiral (helical) HSS |
| Cutter Speed | 4,500 – 6,000 RPM |
| Feed Rate | 6 – 12 m/min (variable) |
| Motor Power | 2.2kW – 7.5kW |
| Table Length | 1,200mm – 2,500mm |
| Surface Finish | Ra ≤ 3.2µm (spiral head) |
| CE / Standards | CE MarkedEN 860 |
| Spindle Diameter | 30mm, 40mm, 50mm |
| Spindle Height | ±80mm – ±130mm (adjustable) |
| Spindle Speed | 3,000 / 4,500 / 6,000 / 9,000 RPM |
| Tilting Spindle | 0° – 45° (selected models) |
| Table Size | 800×600mm – 1,200×900mm |
| Motor Power | 2.2kW – 7.5kW |
| Sliding Table | 1,200mm – 1,600mm (optional) |
| CE / Standards | CE MarkedEN 848 |
| Types | Spindle lathe, Bowl lathe, CNC turning |
| Swing Over Bed | 300mm – 600mm |
| Distance Between Centres | 500mm – 1,500mm |
| Spindle Speed | 200 – 3,000 RPM (variable) |
| Motor Power | 0.75kW – 2.2kW |
| Headstock Taper | MT2 / MT3 / 1″ × 8 TPI |
| Indexing | 12 / 24 position (CNC: full servo) |
| CE / Standards | CE MarkedEN 1870 |
Key Specs
Machine Quick-Reference
Cutting
Band Saws
Wheel Size14″ – 36″
Cut Heightup to 400mm
Motor1.5 – 11kW
Lead Time7–14 days
Vertical and horizontal models. Single-phase and 3-phase options in stock.
CNC
CNC Routers
Table1300×2500 – 2000×4000
Accuracy±0.05mm
Spindle3 – 12kW ATC
Lead Time21–35 days
3-axis standard; 4 and 5-axis configured to order. DSP, Syntec, or Fanuc controller.
Surfacing
Planers
Width300 – 630mm
FinishRa ≤ 3.2µm
Feed6 – 12 m/min
Lead Time7–14 days
Spiral cutter head option dramatically reduces noise and improves finish quality.
Edge & Panel
Edge Banders
Panel Thickness8 – 60mm
Feed Speed6 – 22 m/min
Edge Thickness0.4 – 3mm
Lead Time10–21 days
Entry-level manual to fully automated PLC-controlled banding lines available.
Turning
Wood Lathes
Swing300 – 600mm
Between Centres500 – 1,500mm
Speed Range200 – 3,000 RPM
Lead Time7–14 days
Bench-top to free-standing floor models. CNC turning versions configured to order.
Extraction
Dust Extractors
Airflow1,500 – 12,000 m³/hr
Filter Rating1µm – 10µm
Motor1.5 – 15kW
Lead Time5–10 days
Single-machine and centralised extraction systems. ATEX-rated options available.
How It Works
From Order to
Running Machine
-
01Consultation & SelectionWe assess your production needs, space, power supply, and budget — recommending the right machine or complete line setup.
-
02Order & Lead TimeStock machines dispatch within 7–14 days. Custom or imported units carry a 21–45 day lead time with full tracking provided.
-
03Delivery & UnloadingMachines are crated, insured, and delivered on flatbed or hiab to your site. Unloading crew included for heavy equipment.
-
04Installation & CommissioningOur engineers install, level, wire, and test every machine on-site — ensuring it runs to spec before we leave.
-
05Training & After-SalesOperator training, spare parts packs, and optional service contracts ensure long-term reliability and uptime.
Model Comparison
Compare Machine Ranges
| Machine | Best For | Power | CE Marked | Training Incl. | Grade |
| Band Saw (36″) | Sawmill ripping, resawing | 7.5 – 11kW | ✔ | ✔ | Industrial |
| CNC Router (4-axis) | Furniture, carving, panels | 7.5 – 12kW | ✔ | ✔ | Industrial |
| Spiral Planer 510mm | High-finish surfacing | 4 – 5.5kW | ✔ | ✔ | Professional |
| Spindle Moulder | Profiling, moulding | 2.2 – 5.5kW | ✔ | ✔ | Professional |
| Edge Bander (Auto) | Panel furniture, cabinets | 3 – 6kW | ✔ | ✔ | Industrial |
| Wood Lathe (Floor) | Turning, bowls, spindles | 1.1 – 2.2kW | ✔ | ✔ | Workshop |
| Dust Extractor | Shop-wide extraction | 1.5 – 15kW | ✔ | — | Professional |
Why Choose Us

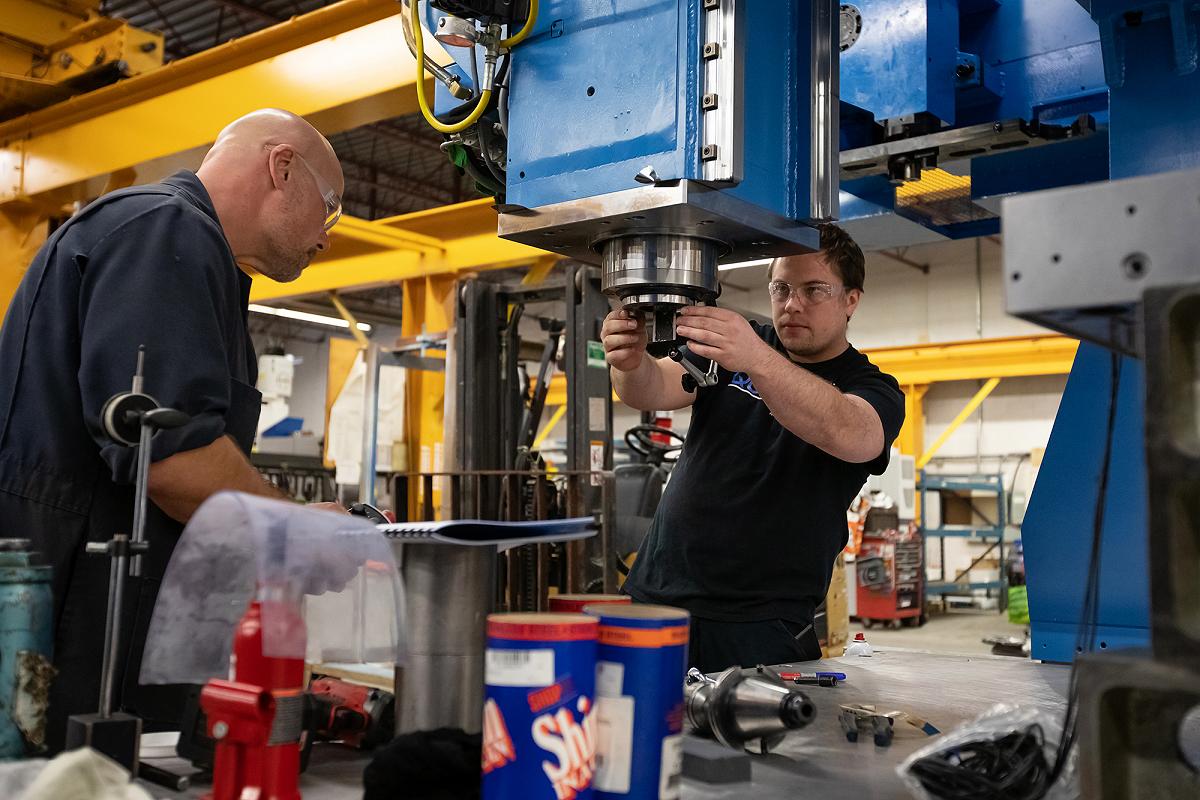

More Than Just
a Machine Supplier
We’re not a catalogue vendor — we’re a machinery partner. From pre-sale consultation to long-term service, we stay involved so your machines keep running.
-
🔩2-Year Standard WarrantyAll machines carry a minimum 2-year parts and labour warranty backed by our local engineering team.
-
🛠️On-Site Installation IncludedEvery machine order includes delivery, installation, levelling, electrical connection, and test run.
-
📦Spare Parts Stocked LocallyCritical wear parts — blades, belts, bearings, and cutters — held in our local warehouse for fast dispatch.
-
🎓Operator Training ProvidedMachine-specific training for your operators — covering safe use, setup, and routine maintenance.
Who We Supply
Industries We Serve

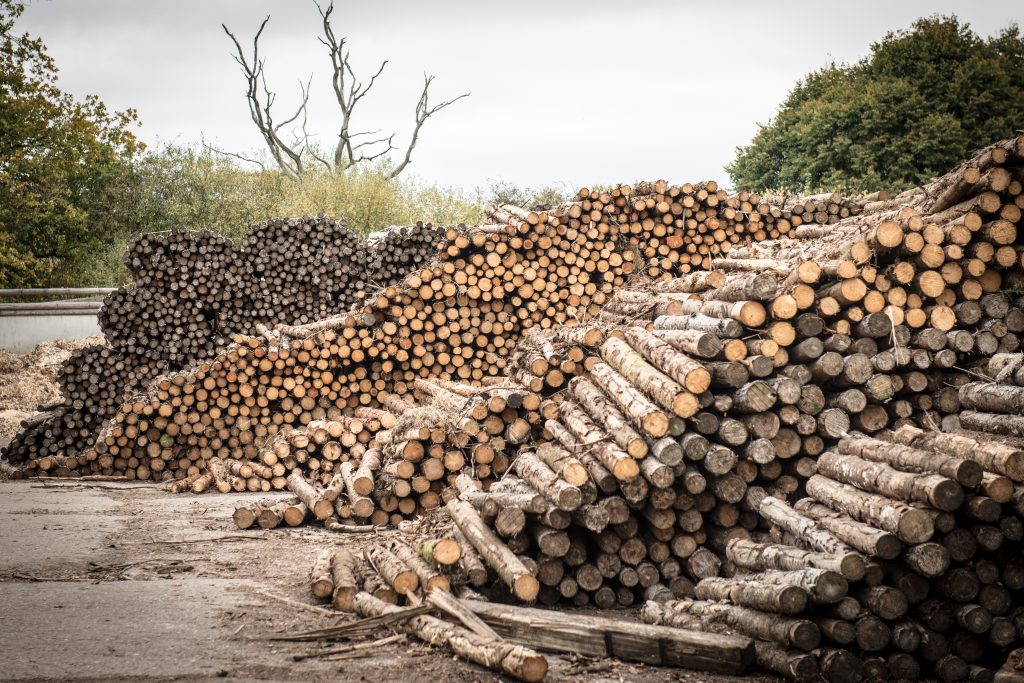

Sawmills & Timber Plants
Complete line setups — from log debarking through resawing to finished dimension timber output.

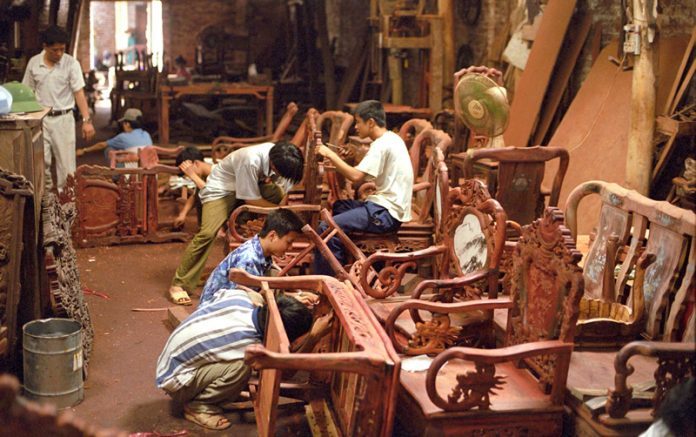

Furniture Manufacturers
Panel processing, edge banding, CNC routing, and assembly machinery for high-volume furniture production.
Joinery & Door Shops
Spindle moulders, CNC routers, planers, and assembly jigs for doors, windows, stairs, and fitted furniture.
Certified & Compliant
✅ CE Marked
🏅 ISO 9001:2015
🔩 2yr Warranty
🛠️ On-Site Install
🚚 Nationwide Delivery
“The 36″ band saw and spiral planer were installed in a single day. The engineers knew exactly what they were doing — both machines ran perfectly from first switch-on. Best machinery purchase we’ve made in ten years.”
Also Explore
Related Products
Timber
Raw & Processed Logs
Sustainably sourced hardwood and softwood logs in bulk for mills and builders.
View Product →
Lumber
Sawn & Dried Lumber
Precision-cut boards, planks, and beams for construction and furniture manufacturing.
View Product →
Machinery
Construction Machinery
Excavators, mixers, compactors, and construction equipment for site and civil works.
View Product →
Need a Machine or
Full Line Setup?
Tell us your production requirements — we’ll recommend, supply, install, and train. Full package, zero hassle.
